RAPID 15 M 38 Lithium PLUS

Cod: 16.0050.01

RAPID 15 M 38 Lithium PLUS

Overview

Rapid 15 represents an important point of reference in the segment of compact scrubber dryers. Its modern design is able to guarantee personality, ergonomics and, most of all, compact dimensions to clean where other scrubber dryers cannot arrive or have difficulty. A functional aesthetics encompasses a top-notch technical solutions system:
- Lithium and Lithium PLUS, two versions with lithium batteries that can be charged at any time, even partially, without any risk of damage (“no memory effect”);
- The front knob over the brush head allows to adjust its angle of incidence, enabling RAPID 15 to perfectly adhere to the working surface in any situation and with any kind of accessories to give excellent results;
- The practical external wheel allows to adjust the height of the head, avoiding overloads of the engine on “difficult” surfaces. In this way RAPID 15 is able to work everywhere without any problems.
- The suction motor guarantees an excellent drying performance and today it is even more reliable thanks to a new protection filter;

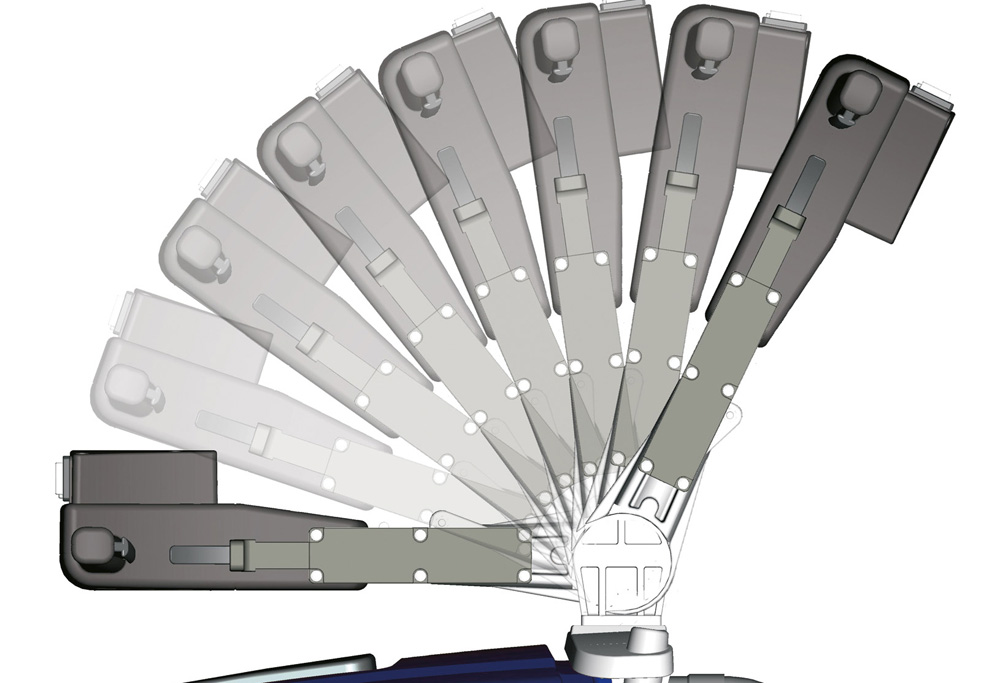

- The squeegee, which is able to turn up to 270°, is today even more practical thanks to its innovative pedal lift system, which allows to safely and practically lift it in any situation.
Maximum functionality and performance which, together with its reduced dimensions and its long working time (2 hours in the Lithium PLUS version) make RAPID 15 the optimal solution for any kind of environment and surfaces, even the narrowest and least accessible ones.

RAPID 15 M 38 Lithium PLUS

Technical data

FEATURES

  • Cleaning widthmm385
  • Squeegee widthmm450
  • Productivity (theor./practical)m²/h1540 - 920
  • Power supplyLithium battery 24V 700Wh
  • Installed powerW510
  • AdvancementManual
  • IP codeIPX3

BATTERIES

  • TypeLithium battery 24V 7000Wh
  • Running timeh - min2 h
  • Battery compartment dimensions x Nomm x No255x205x190 X 1

BRUSHES

  • Pad diameter x Nomm - inch x nr 385 - 15” x 1
  • Motor rating x NoW x nr260 x 1
  • Motor speedrpm130
  • Down pressure - Contact pressureKg - g /cm²25,5 - 32,4

TRACTION

  • Motor ratingW---
  • Driving speedKm/h---
  • Hill climbing ability%2

VACUUM

  • Motor ratingW250
  • Vacuummbar - mmH2O68 - 700
  • Airflow ratingl/s28
  • Noise leveldB(A)65

TANK

  • TypeDouble tank
  • Cleaning solution tankl15
  • Recovery tankl16
  • Weight (empty - with batteries)Kg40 - 43,75
  • Dimensionsmm865x430x1100

RAPID 15 M 38 Lithium PLUS

Standard accessories

  • 40.0008.0015" POLYPROPYLENE BRUSH D. 0.7
  • 30.0024.00SOLUTION TANK FILLING HOSE
  • 95.0009.00SET FRONT/REAR POLYURETHANE BLADE
  • 18.0032.13ON BOARD BATTERY CHARGER 24V 5A
  • 18.0102.00LITHIUM BATTERY 24V 700WH

Optional accessories

  • 40.0408.0015" POLIPROPYLENE BRUSH SOFT D. 0.5
  • 40.0108.0015" POLYPROPYLENE BRUSH D. 0,9
  • 40.0208.0015" TYNEX BRUSH D. 0,9 GRIT 240
  • 40.1008.00PAD HOLDER 355 MM (FOR 15" PAD)
  • 95.0048.00SET FRONT/REAR PARA SQUEEGEE BLADES
  • 95.0088.00KIT SPLASHGUARD WITH BRISTLES
