RAPID 30 SM 45 BC TOUCH

Cod: 13.4187.01

RAPID 30 SM 45 BC TOUCH

Overview

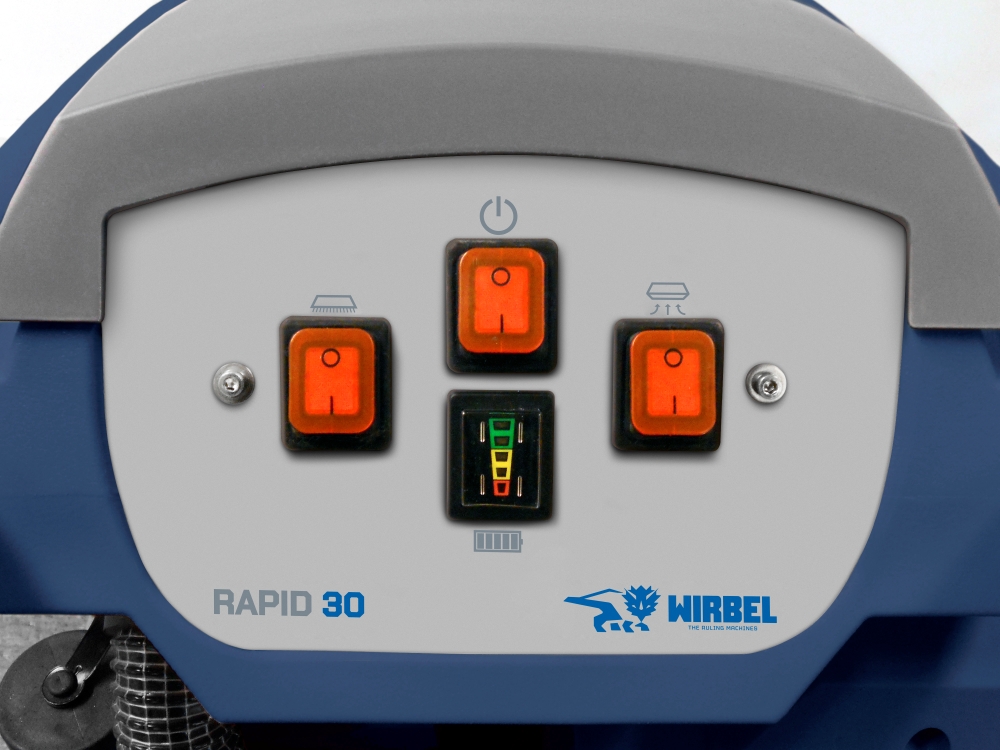

RAPID 30 SM 45 TOUCH is the new born in the RAPID family. Simply Manual: a solutions system which is able to combine the best scrubbing and drying performance with an extreme ease of use: the result is a perfect mix between practicality and cost-effectiveness which guarantees the best operational performance. The new design, makes the machine a masterpiece of aesthetic and ergonomics. Then 30 liters of tank capacity, an high manoeuvrability and above all a complete set of integrated solutions make RAPID 30 suitable for any environment and surface: - Thanks to the new sensor TOUCH SYSTEM, RAPID 30 TOUCH can be moved and controlled only using a thumb: intuitive, user friendly and reliable; - Compact squeegee: large only 65 cm, and adjustable, for excellent drying results; - A complete set of filters to protect the main components and give to RAPID 30 the max reliability; - Performance: high productivity, remarkable running time (more than 1 hour and a half), top cleaning results. RAPID 30 SM 45 TOUCH is available in two versions: basic and full package (standard on board charger + batteries).

RAPID 30 SM 45 BC TOUCH

Technical data

FEATURES

  • Cleaning widthmm430
  • Squeegee widthmm650
  • Productivity (theor./practical)m²/h1720 - 1030
  • Power supplyBattery 24 V
  • Installed powerW600
  • AdvancementManual
  • IP codeIPX3

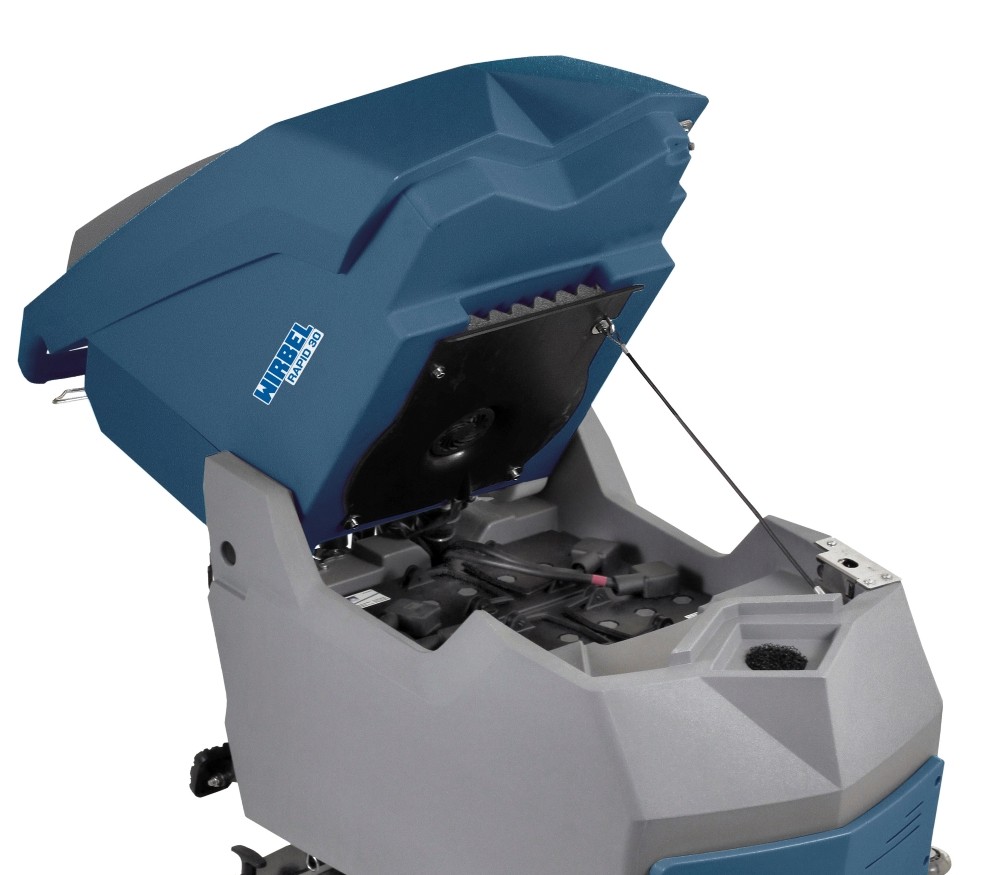

BATTERIES

  • TypeGel battery set (2 pcs) 12 V 50 Ah
  • Running timeh - min1 h and 30 min
  • Battery compartment dimensions x Nomm x No340x340x240 x 1

BRUSHES

  • Pad diameter x Nomm - inch x nr 430 - 17” x 1
  • Motor rating x NoW x nr200x1
  • Down pressure - Contact pressureKg - g /cm²18-17,4

TRACTION

  • Motor ratingW---
  • Driving speedKm/h4
  • Hill climbing ability%2

VACUUM

  • Motor ratingW400
  • Vacuummbar - mmH2O1189
  • Airflow ratingl/s28
  • Noise leveldB(A)64

TANK

  • TypeDouble tank
  • Cleaning solution tankl30
  • Recovery tankl33
  • Weight (empty - with batteries)Kg66 - 104
  • Packaging dimensionsmm1210x560x1020

RAPID 30 SM 45 BC TOUCH

Standard accessories

  • 30.0024.00SOLUTION TANK FILLING HOSE
  • 40.0002.0017" POLYPROPYLENE BRUSH Ø 0,7
  • 22.0630.00ON BOARD CHARGER 24 V 5 A
  • 18.0026.00GEL BATTERIES SET (2 PCS) 12 V 50 AH
  • 96.0159.00FRONT + REAR NATURAL RUBBER BLADES

Optional accessories

  • 40.0102.0017" POLYPROPYLENE BRUSH Ø 0.9
  • 40.0202.0017" TYNEX BRUSH Ø 1.2 GRIT 80
  • 40.1007.00PAD HOLDER 420 MM (FOR 17" PAD)
  • 96.0011.00SET FRONT + REAR POLYURETHANE SQUEEGEE BLADES
  • 96.0171.00EXTRA WEIGHT FOR SQUEEGEE (1X700 G)
