C 143 L 10

Cod: 00-183EL

C 143 L 10

Overview

Models with working width of 430 mm, the effective combination of motor - weight - speed, makes this machine suitable for any cleaning task and restoration. Very strong induction motor for long lifetime and great performances. Double protection against unintentional start. Satellite and planetary gearbox for high power transmission, long lifetime and low noise level. Handle of last generation, resulted of a perfect synthesis among great sturdiness, ergonomics, safety and innovative design.
L10: basic model versatile and easy to use.
L13: version with stronger motor for more demanding and harder works.
L16: with special high efficient motor for using the machine with special accessories like additional weight, sanding papers or for grinding/scarifying.
L22: Model with working width of 430 mm, with a 3 HP power remarkable motor, allowing its use in super-professional fields.

C 143 L 10

Technical data

TECHNICAL DATA

  • Working width - Ø brushmm430
  • Brush speedrpm154
  • VoltageV220 - 240
  • FrequencyHz50
  • Brush motor ratingW1000
  • Brush contact pressureg/cm²40,3
  • Under-ride heightmm330
  • Dust pick-up attachmentYes
  • Noise leveldbA<54
  • Transmissionplanetary gear box
  • IP codeIPX4
  • Power supply cablem12
  • Weight (without accessories)Kg41
  • Dimensionsmm1200x542x430

C 143 L 10

Standard accessories

Optional accessories

  • 00-240PAD HOLDER 17"
  • 00-241SCRUBBING BRUSH MM 0,6 - 17"
  • 00-243CARPET CLEANING BRUSH 17"
  • 00-246TYNEX SCRUBBING BRUSH 17"
  • 00-253PAD HOLDER SANDING 16"
  • 00-330TANK ERGOLINE 12 L

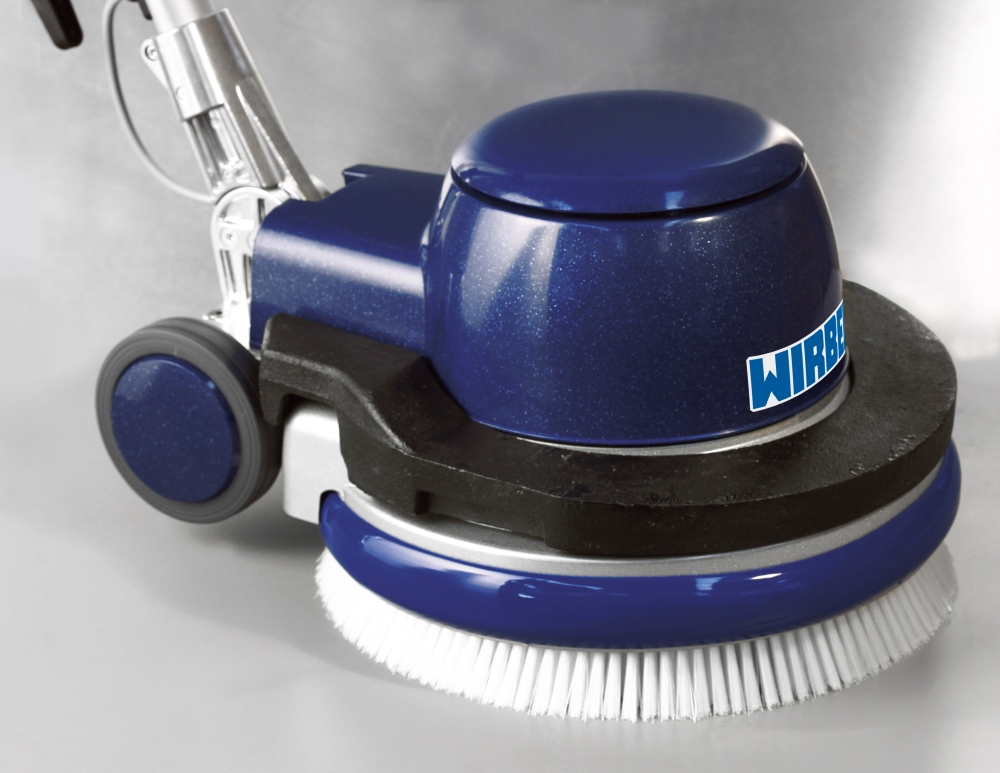

  • 14-113EXTRA WEIGHT 10 KG - 17"
